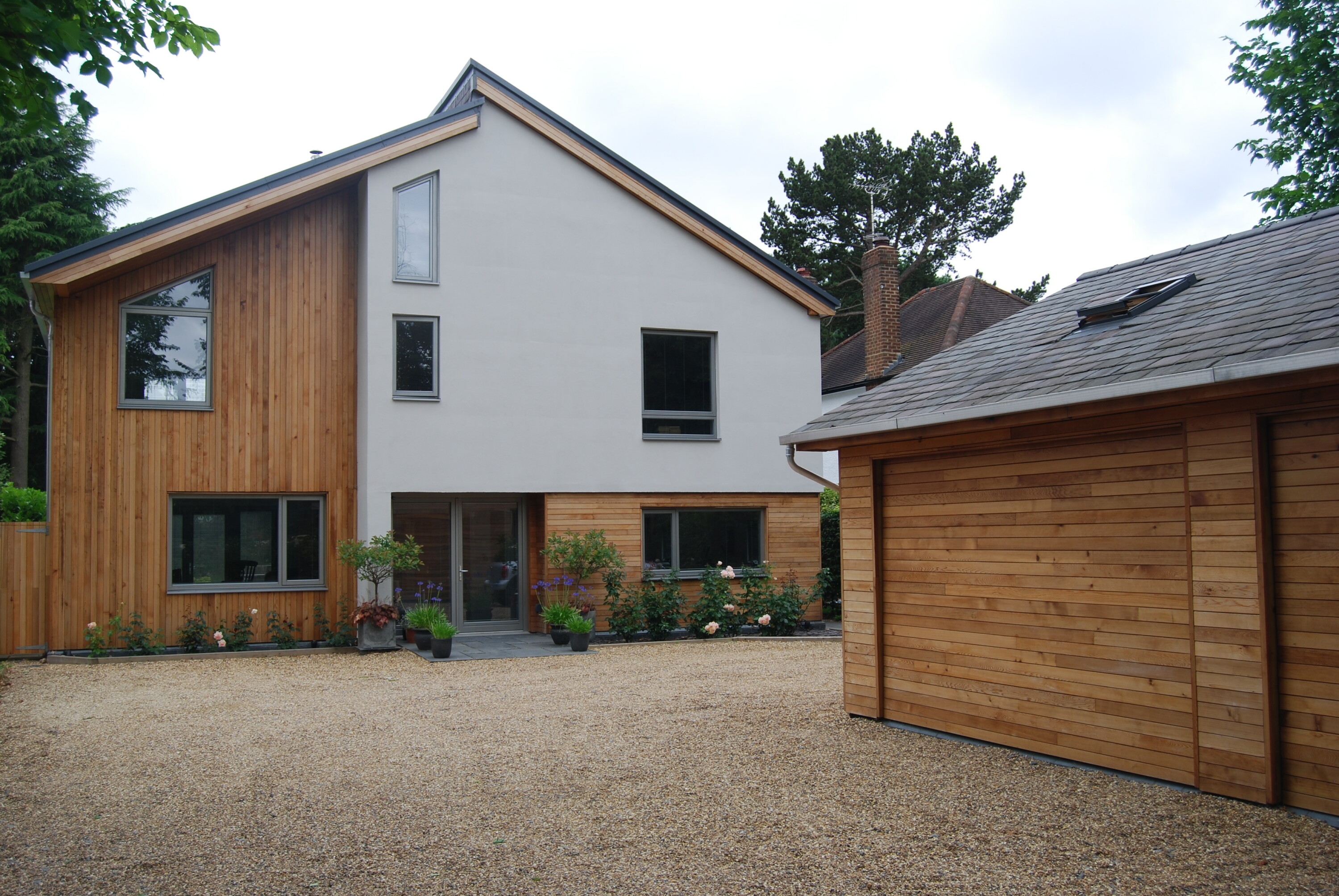

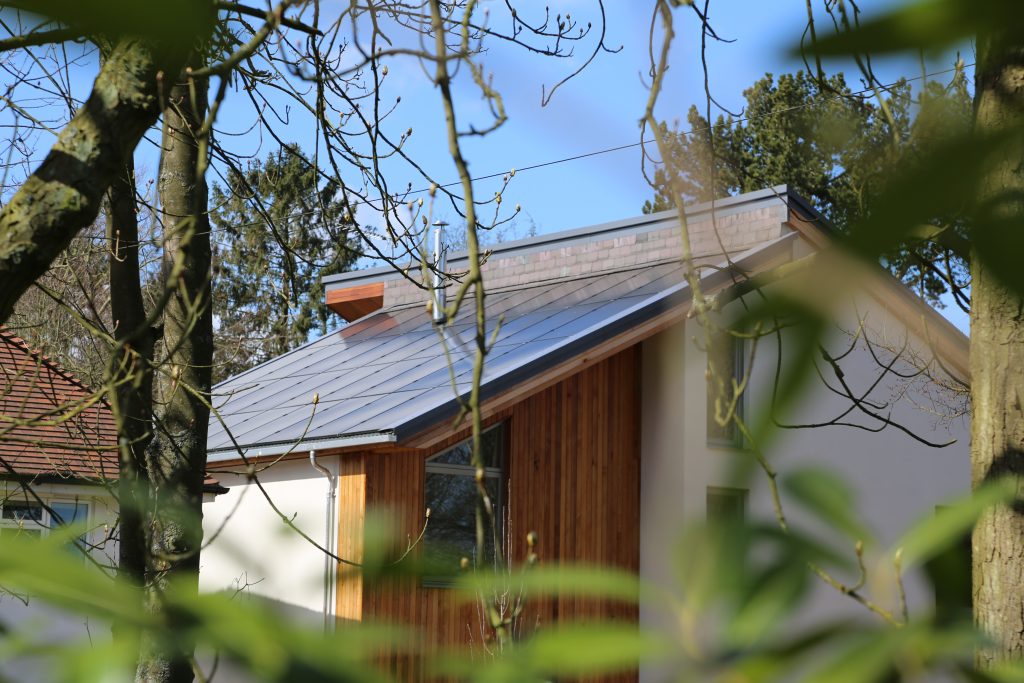

62 Kimpton Road
An award-winning, self-build house in Hertfordshire that is net-zero energy in operation, with a 31 panel PV array, a ground-source (thermal piles) heat pump for heating and hot water, mechanical ventilation, heat recovery system, high levels of insulation and use of sustainable materials above ground level.
Highlights
- Building Futures Award 2016 Winner for the Most Sustainable Construction Project
- 25 tonnes CO2 emission saved from solar PV (June 2015 to August 2018)
Approaches Used

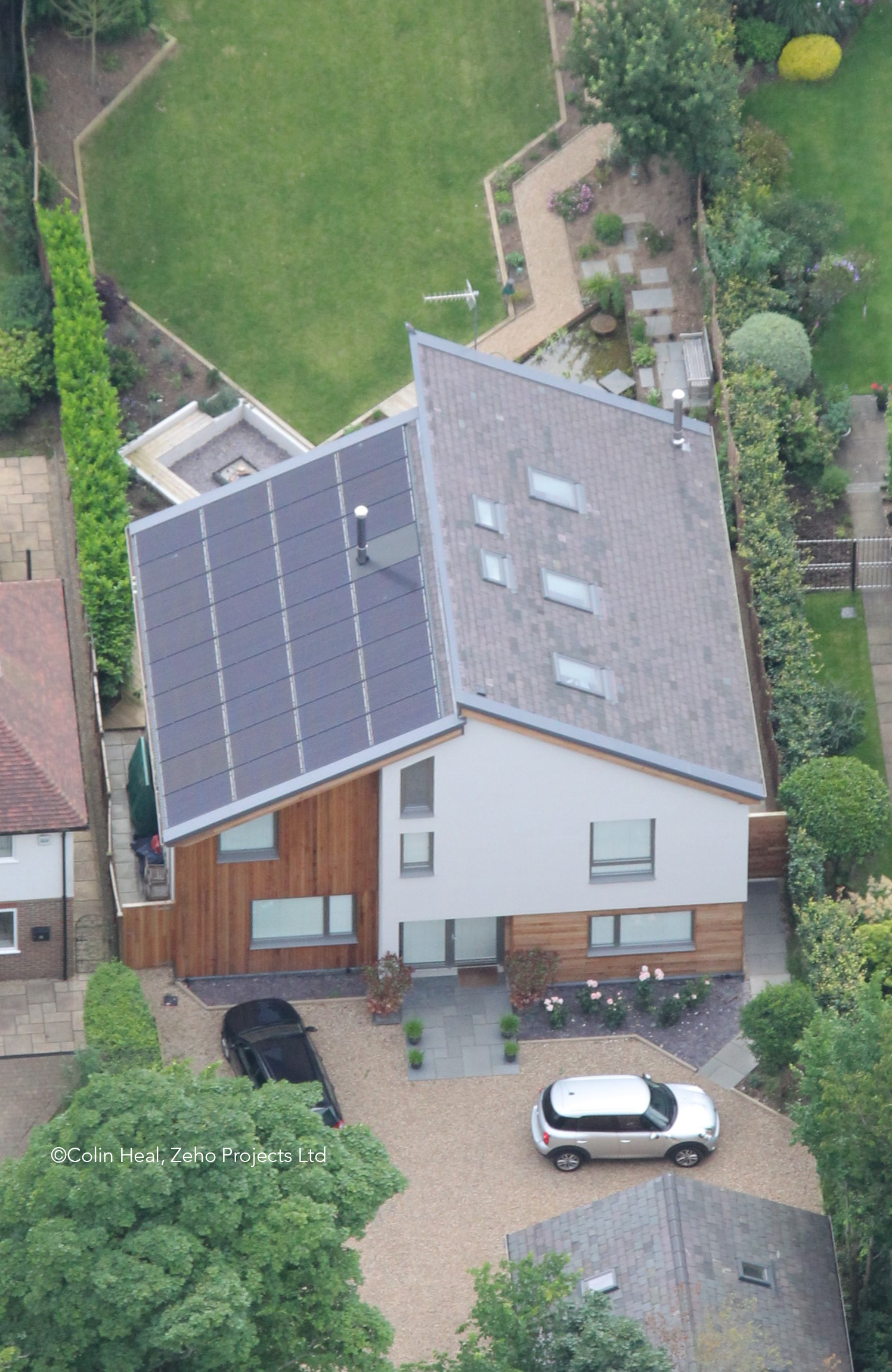

- 35 x 9.45 kWp PV panels producing 36.35 MWh from 2015 to 2018.
- Ground source heat pump (5kw) with collector pipework installed in standard concrete piles
- Cement only used in foundations and brickwork below damp-proof course
- Structurally insulated panels (SIPS) used for timber frame
- Materials reused or with recycled content – glass fibre insulation, plasterboard, roof slates
- Timber salvaged from demolition for garage timber frame, granite setts, recycled glass kitchen worktops
- Pre-finished double-glazed timber windows
- Triple glazed bi-fold doors and rooflights
- No gas use on-site
- Mechanical ventilation and heat recovery system
- Timber finishes to cladding, staircase, flooring and doors

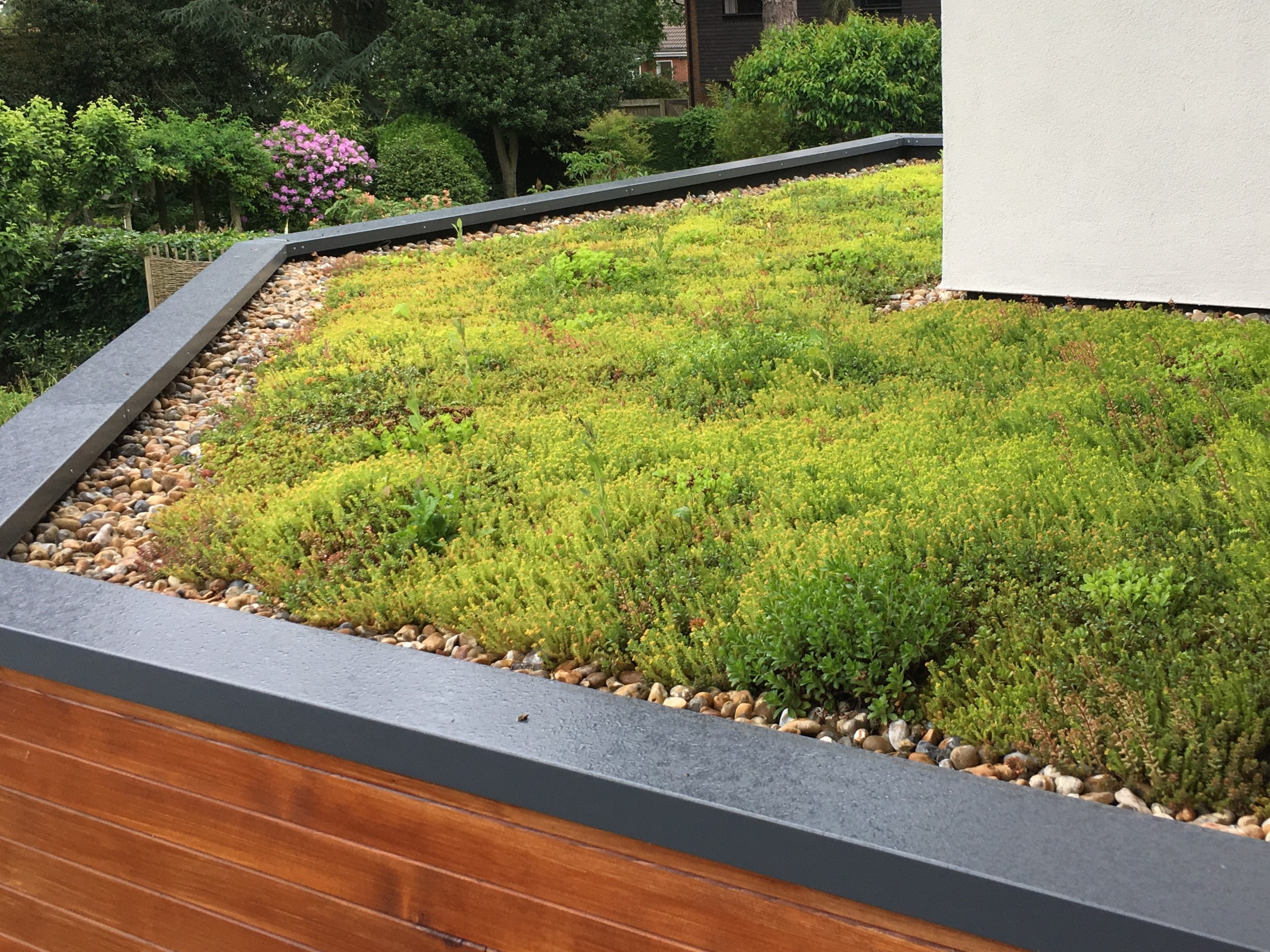

- Green roof and sustainable urban drainage system (SUDS) used, including permeable paving
For Further Information:
Please contact: Colin Heal
Related members
Related

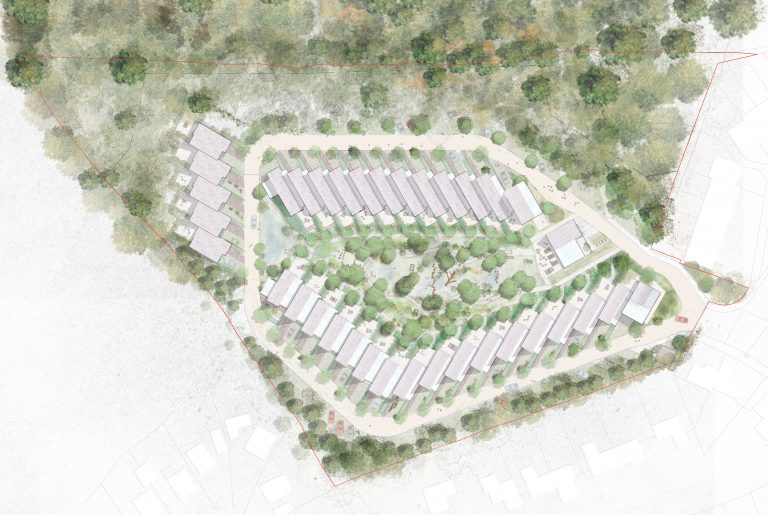

Parc Hadau
A new development of 35 homes that will use on-site rooftop PV panels and time-of-use grid emission factors to demonstrate an annual net zero carbon balance.

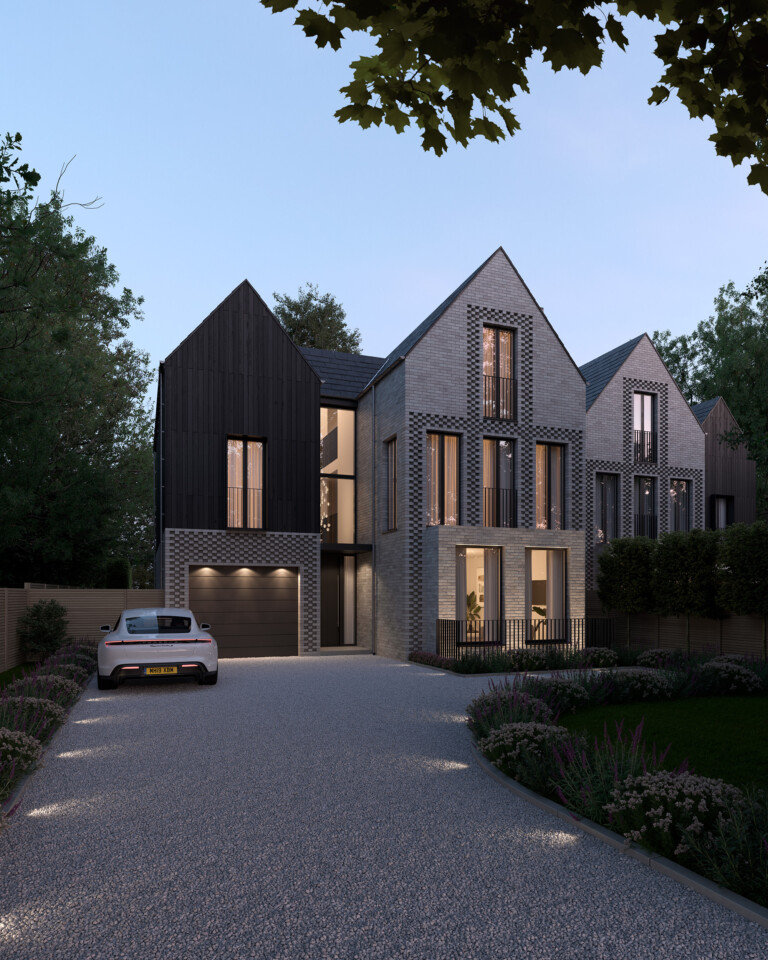

Didsbury Park
Two new builds in a conservation area that prioritise the wellbeing of inhabitants alongside decarbonisation.

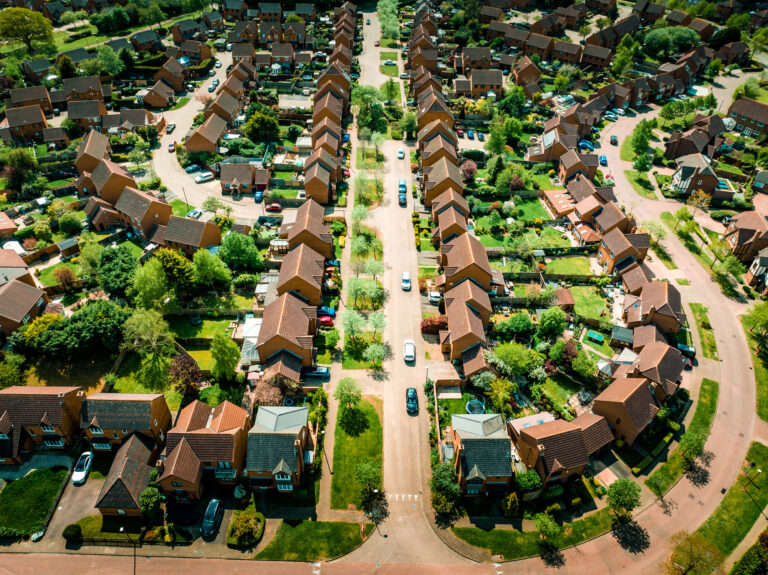

Building the case for Net Zero: Closing the gap towards net zero carbon new-build homes
Findings from a study examining the design and cost implications of significantly reducing carbon across new homes.

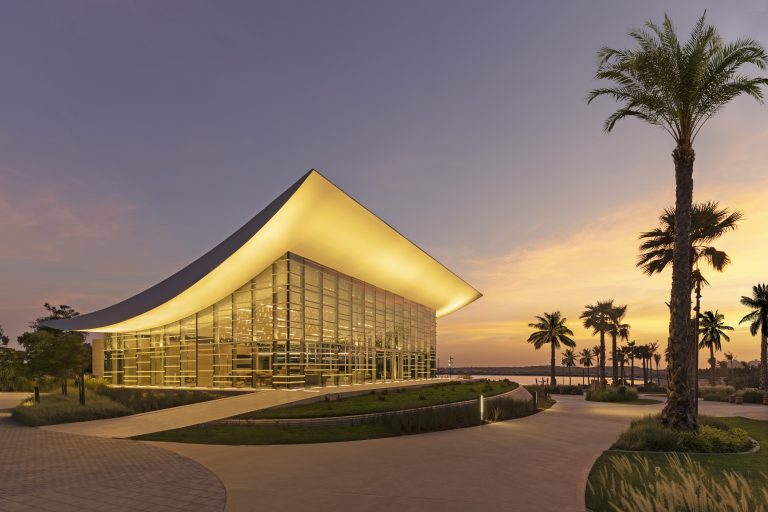

Tilal Al Ghaf – Sales & Experience Center
